Fascial Closure System
The Shogun Axis is a single-use trocar that enables guided, reliable port-site closure during laparoscopic surgery.
Access • Align • Capture • Close
How Axis™ Works
Guided channels and depth alignment deliver consistent port-site closure, positioning the suture approximately 9 mm from the edge of the cannula defect at the intended plane.
- Access: Optical or bladeless Axis trocar establishes pneumoperitoneum at the chosen port site.
- Align: The cannula is seated on the abdominal wall and the black alignment line is set level with the peritoneal surface. This establishes a repeatable suture path approximately 9 mm from the cannula defect at the peritoneal plane.
- Capture: The push-button passer advances the suture down one closure channel and retrieves it through the opposite channel along this guided 9 mm path. The system is designed to capture the fascia–peritoneum complex with a small, standardised bite around the port site.
- Close: The cannula is withdrawn, leaving paired suture limbs for extracorporeal knot tying to cinch and secure the fascial closure.
Download IFU
Designed with Purpose

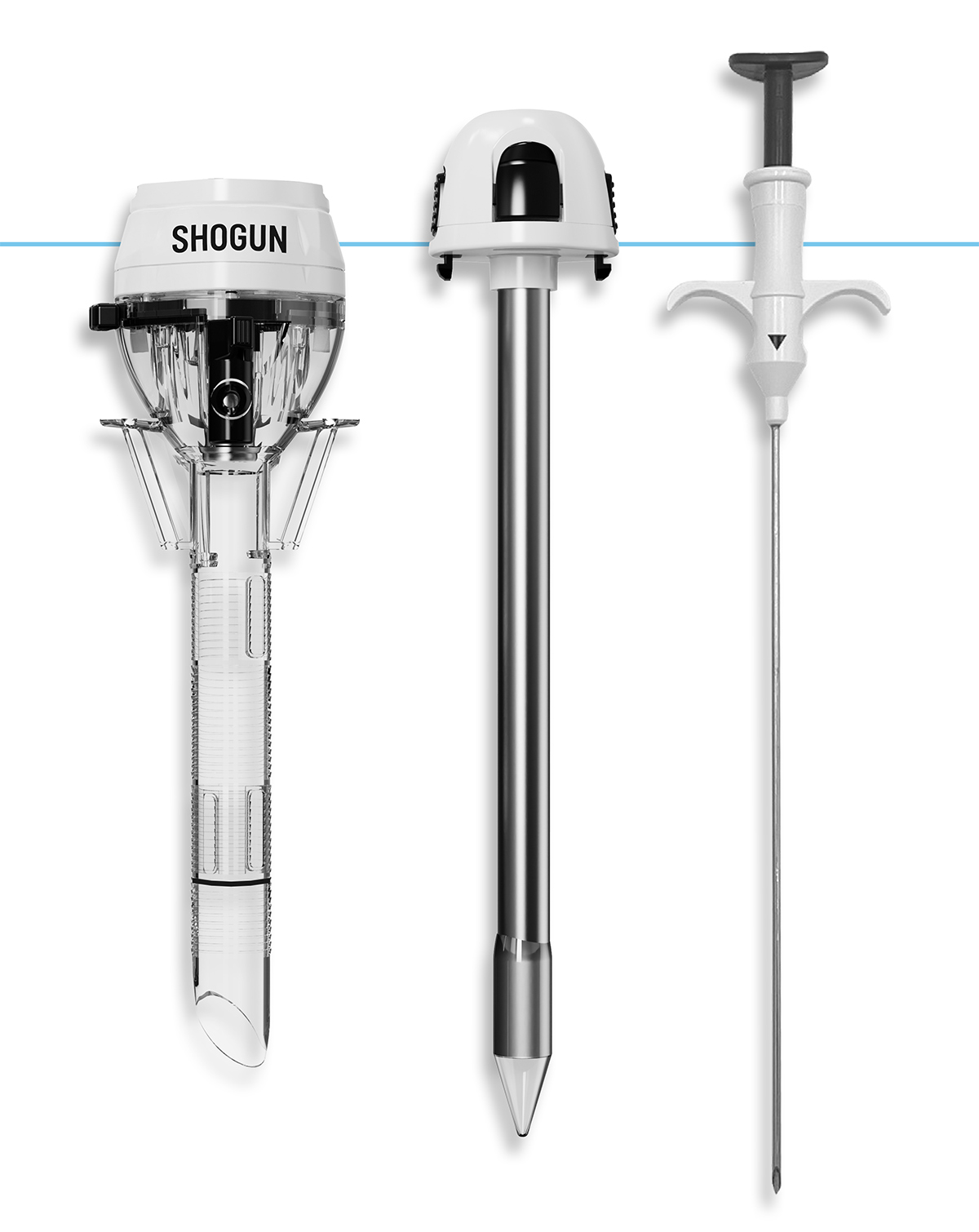

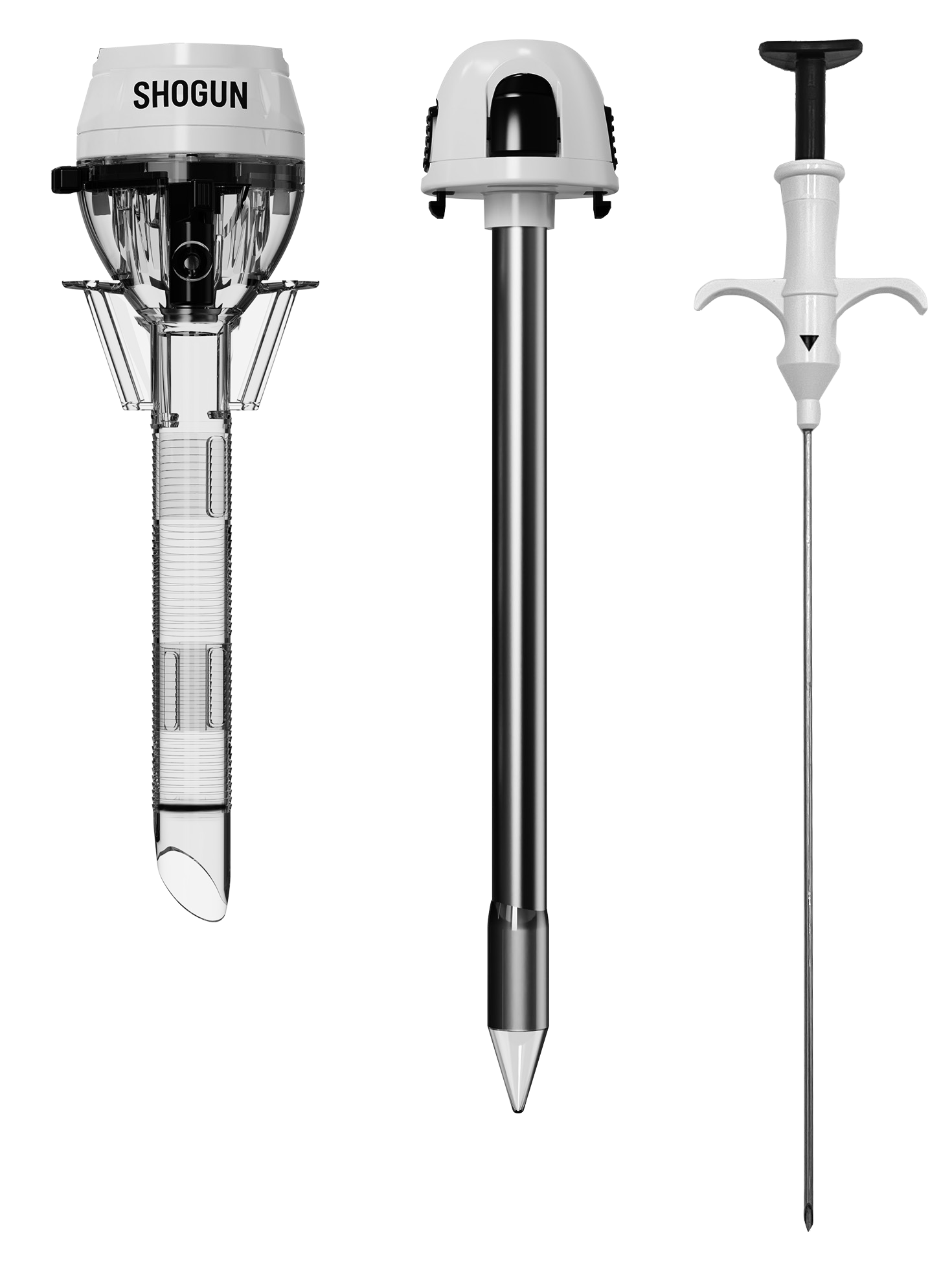

The Shogun Axis device delivers reliable port access and precise fascial closure with an integrated sterile suture needle.
Access & Closure in one Device
Axis is a single-use laparoscopic trocar with dual function, meaning it can both establish the port and guides fascial closure at the same site. There is no need for a separate closure device or extra skin incisions.
- Optical or bladeless access options
- One device for both access and closure
- Fewer parts and steps than using a separate closure device or alternative integrated fascial closure device
- Pneumoperitoneum maintained during closure
Axis™ is Fast
Lean Workflow, Fewer Consumables
Axis replaces multiple instruments with a single sterile pack. The included suture needle and single-use passer remove the need for reusable closure devices, reprocessing, and extra kits on the back table.
- Included single-use suture needle, no separate closure kit
- No sterilisation, tracking, or turnaround of reusable passers
- Fewer instruments to open and manage in each case
- Lower per-case cost compared with adding a separate closure device
Axis™ is Simple
Guides, Repeatable Fascial Bites
Opposed suture channels and a clear alignment line set a fixed, secure bite at the peritoneal surface. The dedicated push-button passer and needle help surgeons place and retrieve the suture at the intended depth every time.
- Two opposed closure channels 180 degrees apart
- Black alignment line targets depth at the peritoneal surface
- Single-use push-button passer with directional markers
- Consistent, symmetric closure without losing pneumoperitoneum
axis™ is Secure
Device / System
Integrated Access & Closure
Component Count
Workflow Steps
Fascial Bite Depth
Pneumoperitoneum Maintained
Shogun Axis™
✓
3, included in one sterile pack (access + closure + suture passer)
Minimal
9 mm
✓
Alternative fascial closure system with integrated access
✓
4, requires additional insert and re-usable instrument
Increased
5 mm
✓
Conventional trocar + dedicated fascial closure device
X
4+, requires additional sterile pack
Increased
Variable
✓
* cannula remains
Conventional trocar + manual fascial closure instruments
X
4+, requires additional sterile packs
Highest
Variable
X
Device / System
Integrated Access & Closure
Component Count
Shogun Axis™
✓
3, included in one sterile pack (access + closure + suture passer)
Alternative fascial closure system with integrated access
✓
4, requires additional insert and re-usable instrument
Conventional trocar + dedicated fascial closure device
X
4+, requires additional sterile pack
Conventional trocar + manual fascial closure instruments
X
4+, requires additional sterile packs
Device / System
Workflow Steps
Fascial Bite Depth
Pneumoperitoneum Maintained
Shogun Axis™
Minimal
9 mm
✓
Alternative fascial closure system with integrated access
Increased
5 mm
✓
Conventional trocar + dedicated fascial closure device
Increased
Variable
✓
* cannula remains
Conventional trocar + manual fascial closure instruments
Highest
Variable
X
A Note On Regulatory Status
FDA 510(k) submission planned for September 2025; EU CE certification in progress. Not for sale in jurisdictions where approval is pending.
The Shogun Axis™
Questions?
See Axis™ in your workflow? Need more information? Fill out this form for expert guidance.
Your message has been sent
Shogun Medical Limited
Shogun Medical Ltd, Hunter House,
150 Hutton Road, Shenfield, Essex CM15 8NL
United Kingdom
www.shogunmedical.com
Legal
Patents: CN ZL201880079226.2; International patent applications pending under the PCT
